What a sand mound system actually is

A sand mound (sometimes called a raised-bed or mound system) is a septic system built above grade rather than buried below the soil surface. It uses a constructed bed of engineered sand placed on top of the ground instead of relying on native soil to treat wastewater.

Wastewater flows to a conventional septic tank first, where solids settle. The liquid effluent then moves to a dosing chamber, where a pump delivers timed doses to distribution pipes buried in the sand fill. The sand filters and treats the effluent as it percolates into the native soil below.

The U.S. EPA SepticSmart program recognizes mound systems as an engineered alternative for sites where a conventional drain field cannot be approved. Your county health department, using data from a licensed soil scientist or site evaluator, determines whether a mound is required on your parcel.

Why sites require a mound

Sand mounds are required when site conditions make a conventional gravity drain field impractical or prohibited by code. The common triggers:

• Shallow depth to groundwater. Many states require a minimum vertical separation (often 24 to 36 inches or more) between the bottom of the drain trench and the seasonal high water table. When the water table is too close to the surface, a mound raises the treatment zone above it.
• Shallow soil over bedrock. Thin soil over rock leaves too little travel distance for effluent to be treated before reaching groundwater.
• Poor or extreme percolation. Clay-heavy soil that drains too slowly can pool effluent. Pure sand or gravel that drains too fast does not treat it adequately. Engineered fill creates the right permeability.
• Prior field failure on an unsuitable lot. On some parcels, a mound is the only approved replacement option when an original conventional field fails.

The cost breakdown

Sand mound systems are more expensive than conventional systems, and the reasons are concrete: more materials, more engineering, and more labor go into them.

Design and permitting. A licensed engineer or site evaluator must prepare a site-specific design, and your health department must review and approve it before a shovel goes in the ground. Design and permit fees commonly run about $1,000 to $3,000, though they vary considerably by state and system complexity.

Site preparation. Before fill is placed, the ground surface is typically scarified (roughened) to help the sand bond with the native soil. Some sites also require clearing or grading first.

Sand fill. The mound is built from a specific grade of clean sand that meets engineering specs, not landscape or masonry sand. Delivered material plus placement labor is one of the largest cost drivers. A typical residential mound can measure 30 to 60 feet long and 2 to 4 feet tall, which is a lot of material.

Septic tank. A sand mound still uses a conventional septic tank at the front end, typically 1,000 to 1,500 gallons. If the home does not already have one, that adds $1,000 to $3,000 or more to the total. For broader context on conventional component pricing, see our guide to how much does a septic system cost.

Dosing chamber and pump. A separate dosing tank holds effluent between pump cycles. An effluent pump, float controls, alarm, and electrical hookup typically add $1,500 to $3,000. For more on how these components work, see our guide to septic tank effluent pumps explained.

Distribution system and finish. Perforated pipes or a pressure manifold distributes effluent evenly across the sand bed. Once the pipes are set, the mound is covered with topsoil and seeded or sodded to establish vegetation that prevents erosion and assists with evapotranspiration.

Putting these components together, total installed costs for a residential sand mound system commonly fall in the $10,000 to $30,000 range for straightforward sites. Large homes, difficult soils, or high-labor markets can push the bill well above $30,000. For a look at other alternative systems, see our guide to engineered and alternative septic system costs.

What drives the price up

Several factors push a sand mound budget toward the high end.

System size. Most jurisdictions size the system to bedroom count, used as a proxy for daily wastewater flow. A five-bedroom home needs a much larger mound than a two-bedroom home.

Depth of required fill. The thinner the native soil, the taller the mound must be to achieve required separation from the water table or bedrock. More fill means more cost.

Site access and contractor availability. A lot that is hard for a delivery truck to reach raises hauling costs. Rural areas with fewer licensed mound installers sometimes charge more for travel. Getting multiple bids is worth the time.

State-specific requirements. Some states have detailed prescriptive construction standards that add cost; others allow more design flexibility.

Ongoing maintenance costs

A sand mound is not a set-and-forget system. Its mechanical components need regular attention.

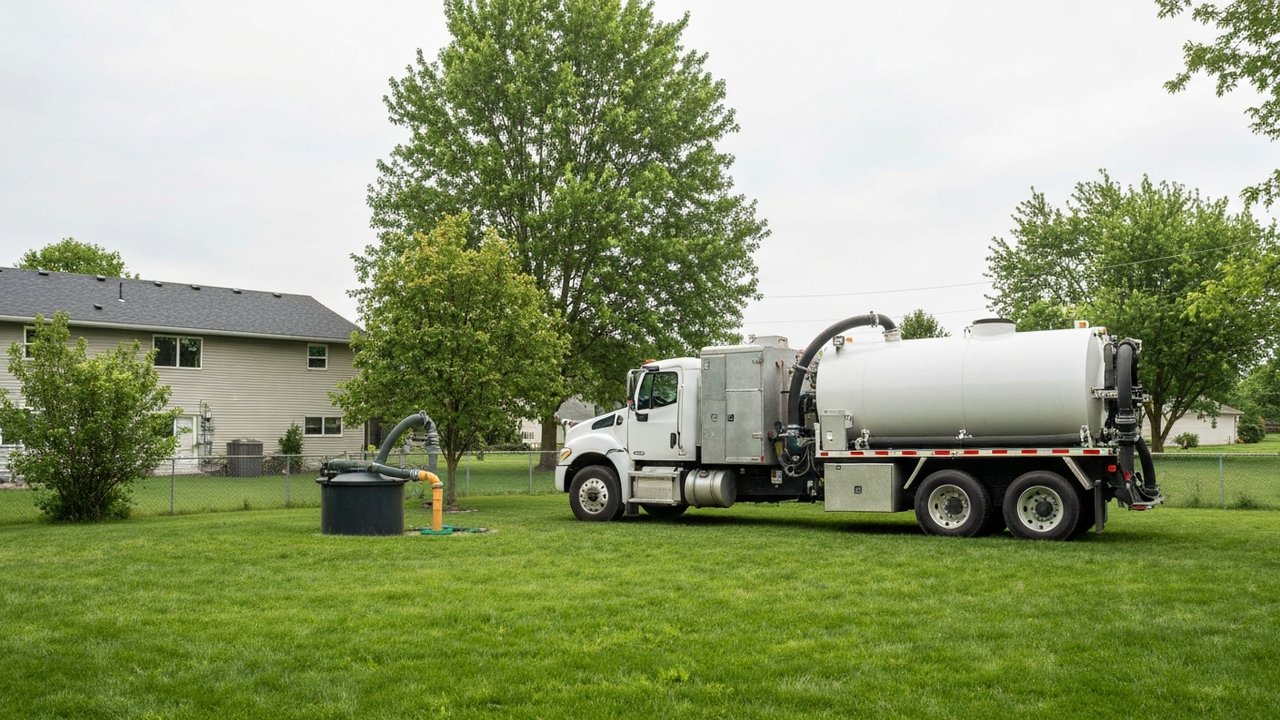

Septic tank pumping. The tank below the mound accumulates sludge and must be pumped on a regular schedule, typically every 3 to 5 years for most households. Plan on $300 to $600 per pump-out in most parts of the US.

Pump inspection and service. The dosing pump and controls should be checked annually. Replacement, typically needed every 10 to 15 years, commonly runs $500 to $1,500 or more.

Alarm testing. A high-level alarm alerts you if the dosing tank is not pumping down correctly. Test it periodically and act on any alert promptly. Ignoring one can allow effluent to back up into the home.

Mound surface. Keep the mound clear of deep-rooted plants and trees. Grass is ideal. Shrubs and trees can damage distribution pipes and compromise the sand layer.

Permits and professional requirements

No sand mound can be legally installed without a permit from your county or local health department. The process typically involves a soil site evaluation, design review, an inspection during construction, and a final sign-off before the system is placed in service.

The permit process protects you: it verifies the system is sited correctly, sized for your home, and built to standard. Skipping it or hiring an unlicensed contractor is illegal in virtually every state and creates real liability if the system fails or when you sell. Always budget for permitting from the start.

FAQ

How much does a sand mound septic system cost compared to a conventional one? A conventional gravity system typically runs $3,000 to $10,000 installed. A sand mound commonly costs $10,000 to $30,000, sometimes more, because of the added sand fill, engineering design, dosing pump, and electrical work. The premium is real but reflects a system that will function on sites where a conventional drain field would not be approved.

How long does a sand mound system last? A properly maintained mound system can last 20 to 30 years or longer. The pump and controls need periodic replacement, but the mound structure itself has a long service life when built correctly. Neglect, particularly skipping tank pumping or planting trees over the mound, shortens it considerably.

Does a sand mound need more maintenance than a regular septic system? In one respect, yes. The dosing pump and controls are mechanical parts that a conventional gravity system lacks, so they require annual inspection and eventual replacement. Otherwise the basics are the same: pump the tank on schedule, protect the mound surface, and keep harmful chemicals and solids out of the system.

Can I get a sand mound system approved for a home I am buying? That depends on the soil evaluation and local code. If a mound is already required on the parcel, you should know before closing. If you are buying raw land to build on, have the soil evaluated before you finalize the purchase. Discovering afterward that the lot requires a costly alternative system, or cannot support any approved system at all, is an expensive surprise.

This article is general educational information, not professional plumbing or engineering advice. Costs vary by region, site conditions, and provider. Always work with a licensed septic professional and your local health department for design, permitting, and installation.
